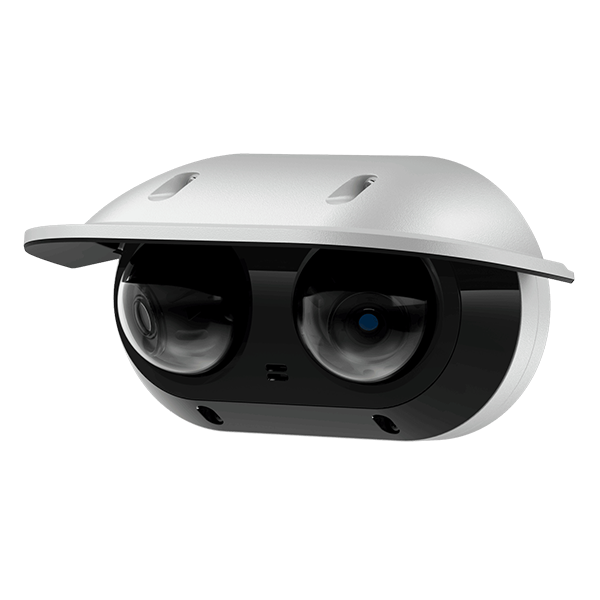

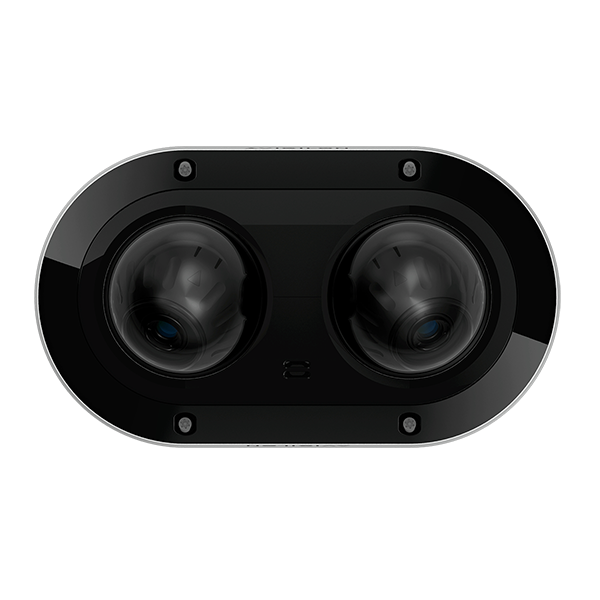

Avigilon H6A Dual Head Camera
Double the sensors, double the coverage
Say goodbye to blind spots in stairwells, hallways and corners with the Avigilon Unity H6A Dual Head camera for bidirectional coverage. Customize your field of view with varifocal lenses, and have 24/7 visibility with built-in IR. Plus, AI-powered video and audio keep you ahead of threats.
AI-Powered Video Analytics – Stay on top of what’s happening at your site with built-in video analytics to alert you of unusual crowds, abnormal activity and potentially critical events.
Audio Analytics & Recording – Expand your real-time awareness with audio alerts for gunshots¹, breaking glass, screeching tires and more. Have the option to record audio evidence when you need it.
Custom Field of View & Zoom – Get the perfect perspective with the camera’s varifocal lenses that lets you customize the field of view. Zoom into a scene for a closer look without losing evidentiary detail.
Two Cameras in One – Lower your total cost of ownership with one H6A Dual Head that can do the job of two cameras, requiring only one VMS license and cable.
24/7 Visibility – Get incredible image detail and situational awareness with 6, 10 and 16 MP total resolutions, plus visibility in low-light areas with built-in IR.
Secure and Compliant – Trust that your data is well-protected with advanced cybersecurity features such as an onboard FIPS 140-2 compliant TPM and Secure Boot.
Performance Characteristics
Audio Compression Method
G.711 PCM 8 kHz, Opus
Audio Input/Output
Line level audio I/O
Bandwidth Management
HDSM SmartCodec technology; Idle scene mode
Camera Operating Mode
Full Feature / No Video Analytics / High Framerate
Day/Night Control
Automatic, Color, Monochrome
Device Management Protocols
SNMP v2c, SNMP v3
Dynamic Range
WDR Off – Up to 80 dB
WDR On Measured According to IEC 62676 Part 5 – Up to 105 dB
WDR On – Up to 120 dB
Electronic Shutter Control
Automatic, Manual (1/7.5 to 1/30000 sec)
External I/O Terminal
1x Relay In, 1x Relay Out
Flicker Control
50 Hz, 60 Hz
Image Compression Method
H.264 HDSM SmartCodec, H.265 HDSM SmartCodec, Motion JPEG
Image Sensor
1/2.8” CMOS
Imaging Area (H x V)
5.18 mm x 3.89 mm 0.204″ x 0.153″
IR Illumination (high power 850 mm LEDs)*
30 m
Lens Control
Remote Zoom and Focus, Autofocus, IR Cut Filter
Lens focal length (EFL)
Wide: 3.24 mm
Tele 7.33 mm
Max Frame Rate
(50 Hz/60 Hz): 25 fps/30 fps in High Framerate Mode*, otherwise 20fps/20fps
Microphone
Built-in microphone for audio analytics, with physical disable switch
Network
100BASE-TX
Streaming
Multi-stream H.264, Multi-stream H.265, Motion JPEG
Streaming Protocols
RTP/UDP, RTP/UDP multicast, RTP/RTSP/TCP, RTP/RTSP/HTTP/TCP, RTP/RTSP/HTTPS/TCP, HTTP
Physical Characteristics
Adjustment Range
Pan: 180°, Azimuth: 360°, Tilt: 30° – 95° tilt (recommended), 10° – 95° tilt (maximum)
Body
Polycarbonate and aluminum
Camera Weight

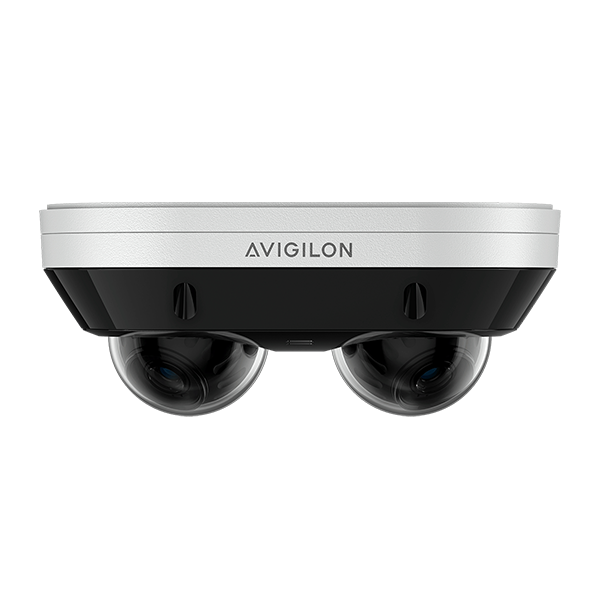

Direct Surface Mount – .42 Kg

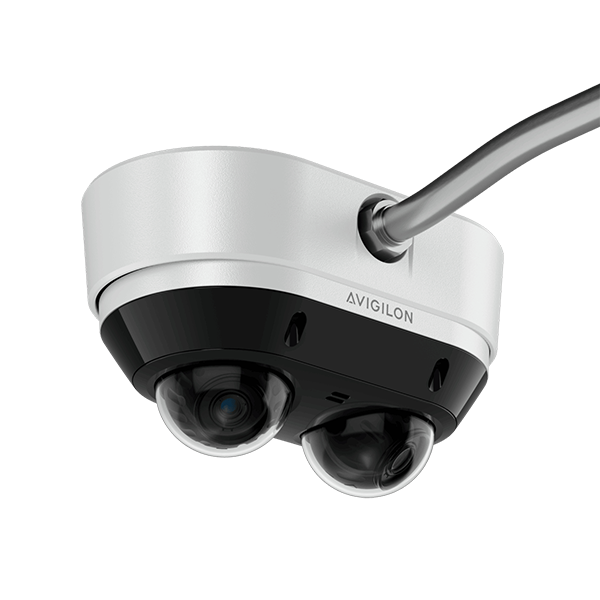

Surface Mount with Junction Box – 2.43 Kg

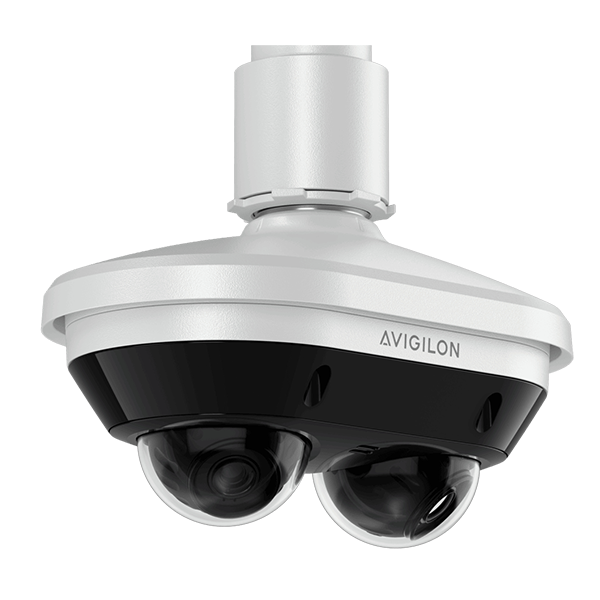

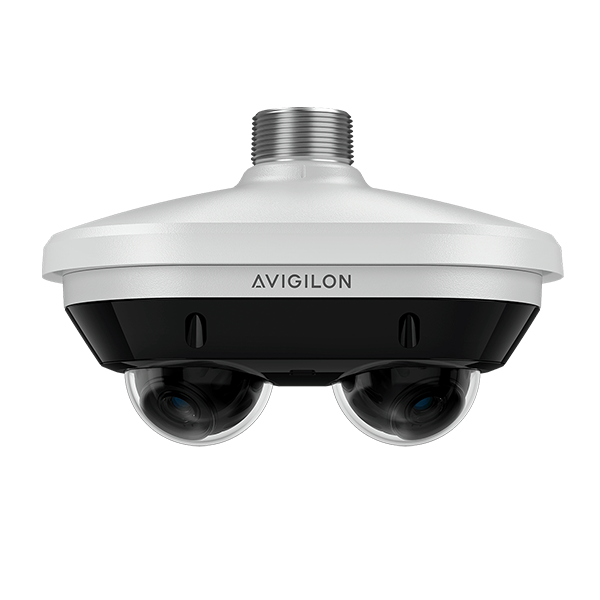

Pendant Mount with NPT Adapter – 1.74 Kg
Dimensions (L x W x H)
Camera Assembly –
Direct Surface Mount – 218 x 125 x 89 mm
Surface Mount with Junction Box- 250 x 157 x 126 mm
Pendant Mount with NPT Adapter -236 x 143 x 151 mm
Accessory Only –
Direct Surface Mount – N/A
Surface Mount with Junction Box- 250 x 157 x 50 mm
Pendant Mount with NPT Adapter -236 x 143 x 75 mm
Dome Bubble
Polycarbonate
Onboard Storage*
Two microSD/microSDHC/microSDXC slots – video speed class card required. Class V10 or better recommended.
Power Characteristics
API
ONVIF® compliance Profile S, Profile T, Profile M, and Profile G
Cabling Type
CAT5e
Memory
4GB RAM
4GB Flash
Power Consumption
25.4W
Power Source
PoE IEEE 802.3af Class 3
PoE+ IEEE 802.3at Class 4
Protocols
IPv6, IPv4, HTTP, HTTPS, SOAP, DNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMPv3, ICMP, DHCP, Zeroconf, HSTS
RTC Backup Battery
3V manganese lithium
